GDU3管道管夹橡胶减震器采用上下橡胶隔振座,上下均采用碳钢材质,内侧贴有橡胶隔振垫,能够吸收管道本身的振动,从而有效隔离管道振动对墙体、地面及设备的振动。该产品优点在于其结实,实用寿命长,安装简便,外形美观,是管道减震器的不二选择。
The GDU3 pipe and rubber shock absorber is equipped with rubber isolators. The upper and lower parts are made of carbon steel, with rubber isolating pad inside, which can absorb the vibration of the pipeline itself, so as to effectively isolate the vibration of pipes, walls, ground and equipment. The advantage of the product lies in its strong, long practical life, easy installation and beautiful appearance, which is the choice of the pipe shock absorber.

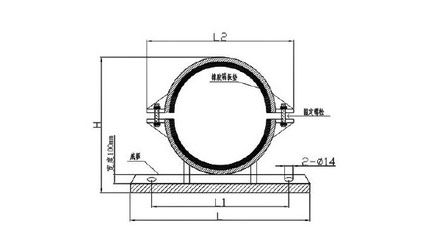

规格 Specifications | L | L1 | H |
GDU3-50 | 200 | 150 | 108 |
GDU3-65 | 220 | 170 | 128 |
GDU3-80 | 230 | 180 | 141 |
GDU3-100 | 250 | 200 | 160 |
GDU3-125 | 275 | 225 | 186 |
GDU3-150 | 325 | 275 | 236 |
GDU3-200 | 385 | 335 | 296 |
GDU3-250 | 440 | 390 | 350 |
GDU3-300 | 500 | 450 | 409 |
GDU3-350 | 550 | 500 | 461 |
GDU3-400 | 600 | 550 | 510 |
GDU3-450 | 650 | 600 | 564 |
GDU3-500 | 700 | 650 | 614 |
GDU3-600 | 800 | 750 | 714 |
GDU3-700 | 900 | 850 | 810 |
GDU3-800 | 1000 | 950 | 910 |
GDU3-900 | 1100 | 1050 | 1010 |
GDU3-1000 | 1200 | 1150 | 1110 |
